Analog Control Unit

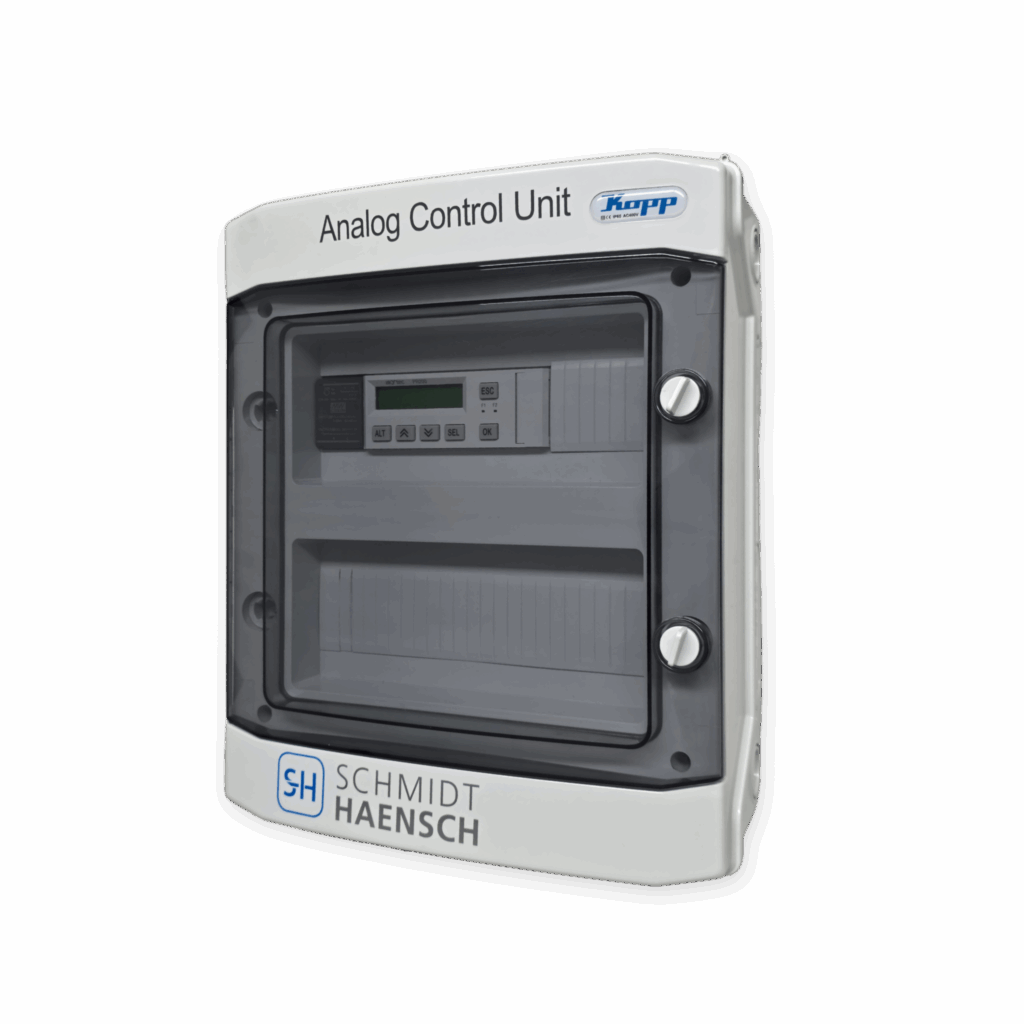

The SCHMIDT + HAENSCH Analog Control Unit enables the simple integration of digital process data into existing analog control systems. It reliably converts the Modbus RTU signals of the iCS² process refractometer into an analog 4-20 mA current signal – ideal for simple integration into PLC or process control systems. The compact design, simple configuration and stable signal transmission make the converter the ideal interface between modern sensor technology and classic control technology.

Checkpoints

Simple commissioning – plug in the iCS², plug in the power cable (EU, US, UK, AUS) – done
The most important values are shown immediately on the illuminated display
Standard housing with 35 mm DIN rail, all external connections are located on the bottom rail – clearly grouped and labeled
Software configurable via six buttons: Assign the two analog outputs to exactly the measured variables you need – whether refractive index (RI), scale value or temperature
Uncomplicated zeroing of the sensor
Pin-protected configuration to prevent unwanted changes
Minimum and maximum values for analog signals can be defined individually
Error handling and simulation option on the 4-20 mA outputs
Six configurable galvanically isolated switching outputs for controlling external components such as valves or pumps or for alarms when limit values are exceeded
Customer-specific adaptations possible on request

Specifications

See data sheet
