Saccharomat® V

Sugar Polarimeter - Saccharimeter

With its worldwide unique quartz-wedge technology, the Saccharomat V is a fully automatically compensated sugar polarimeter. The working principle with quartz wedges is unique and unrivalled in accuracy until today. This Polarimeter does not need recalibration and will deliver reliable results throughout the entire product lifetime. Energy saving LED light sources keep maintenance efforts minimal.

ID-N° 16230 (multiple variations in specifications below)

More about this product

Checkpoints

High performance patented sugar polarimeter
Intuitive user interface
No re-calibration needed
High stability of measuring values
Measurement of dark samples after filtration with SCHMIDT + HAENSCH Autofilt Z with NIR-WL
High resolution 7″ TFT touchscreen
Energy saving LED light source

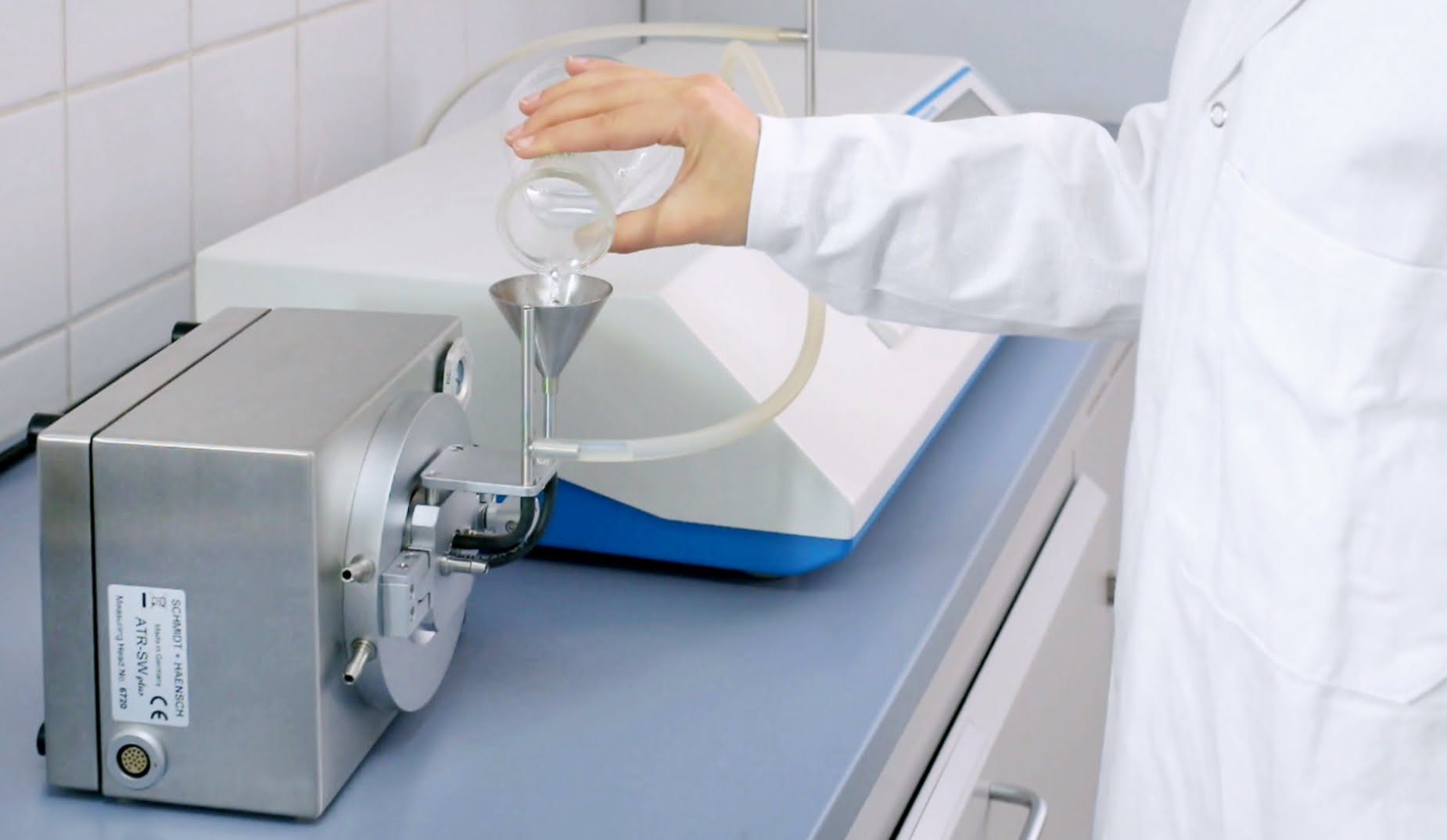

Combination with Polarimetry possible – SCHMIDT + HAENSCH Purity Analyzer

Easy to use

With the use of corresponding polarimeter tube and its self-sealing coupling for quick and safe connection to water circulators, an automatic temperature compensation is made possible. The Polartronic V allows even for dark samples with a high absorption to be measured at NIR wavelength (882.6 nm) after filtration with the AutoFilt Z unit. Additional clarification is not necessary. Paired with ATR P, Pol and Brix values can be measured simultaneously – see SCHMIDT + HAENSCH Purity Analyzer. The continuous measurement can be performed under user-specific methods selected over the intuitive operation system displayed by a high resolution 7” TFT touch screen that can be individually adapted. In addition to the freely programmable formulas up to 1000 scales are freely programmable.

Applications

The Saccharomat V is most often used within the sugar industry and sugar harvest, making it relevant for agriculture. Sugar purity and dark molasses can be analyzed with the highest reliability.

Product in detail

As quartz has an optical rotatory dispersion (ORD) almost identical to that of a sucrose solution, SCHMIDT + HAENSCH developed a unique mechanism using a quartz wedge to compensate for small wavelength shifts. In other words, quartz and the sample react in an identical way to small shifts of wavelength, and these shifts are automatically compensated and the effect becomes irrelevant. This ensures long time stable high precision measuring results without the necessity of recalibration over the lifetime of the instrument. Beside the unnecessary recalibration the Saccharomat V uses an energy saving LED, keeping the maintenance efforts minimal. The functionality of the device can be monitored using triple quartz control plates.

See product conformity

Specifications

Specifications	Saccharomat® V
Measuring scales	°Z International Sugar Scale
Measuring range	– 35 to + 105 °Z
Accuracy	± 0.006 °Z
Reproducibility / Precision	± 0.003 °Z
Resolution	0.01 °Z (0.001 °Z on request)
Sensitivity	up to OD 5
Response time	max. 4 s
Sample temperature	0 to 99 °C
Ambient temperature	10 to 40 °C non-condensing
Temperature accuracy, resolution	± 0.1 °C, 0.01 °C
Temperature Control Range	Automatic temperature compensation recommended. Temperature controlled tubes available on request
Interfaces / Communication	RS232, USB A (2x), Ethernet, WLAN (by WLAN adapter)
Sample chamber	235 mm (for measuring tubes up to 200 mm)
Dimensions	730 x 370 x 160 mm (width x depth x height)
Weight	18.8 kg
Light source	LED, interference filter
Wavelengths	587 nm, 882 nm or 587 + 882 nm
Power supply	90 – 240 V (50 – 60 Hz)
Current consumption	max. 1.2 A at 230 V
Software	Aquisys2
Display	7″ TFT Touchscreen, 800 x 480 Pixel, 16 Bit colors
Peripherals / Operation	Touchscreen \| optional: keyboard, mouse, barcode reader, remote via PC
