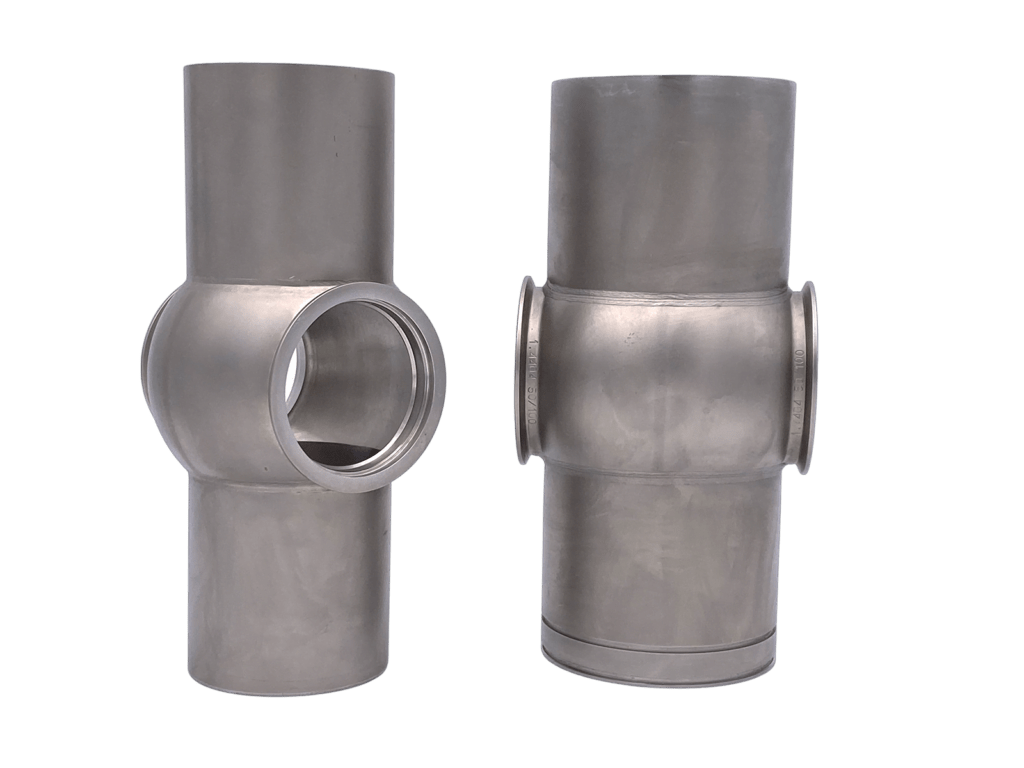

The favorable connections for SCHMIDT + HAENSCH process instruments for pipes and vessels are VariVent in-line housings. This type of connection provides a maximum of flexibility. Our valve housings meet the highest standards for hygienic processes .It can handle pressures up to 10 bar and holds no dead spaces around the measuring head.
It is possible to fit up to 2 different instruments on one in-line housing – for example a measuring head and a prism cleaning unit. The height of our dead-zone-free housings exactly corresponds to the diameter of the connection pipeline. This avoids domes and sumps with their negative effects such as oxidization damage or cleaning problems. The special ball shape of the housing offers the best flow profiles without flow separation.
ID-N° in specifications below
ID-N° in specifications below
Size selection
| VariVent inline housing with weld-in ends standard – DN | ID-N° | |
| DN Ø | 25 mm | 14732 |
| 40 mm | 08211 | |
| 50 mm | 07223 | |
| 65 mm | 08628 | |
| 80 mm | 08629 | |
| 100 mm | 08631 | |
| 125 mm | 08632 | |
| 150 mm | 10425 | |
| VariVent inline housing with weld-in ends standard – inch | ||
| Inch Ø | 1½” | 02796 |
| 2″ | 02634 | |
| 2½” | 10993 | |
| 3″ | 01113 | |
| 4″ | 10995 | |
Subject to change – all information without guarantee
Sale only in combination with a SCHMIDT + HAENSCH High-Resolution Refractometer, Compact Process Refractometer or Full-Range Process Refractometer
